问题

微服务意味着要将单体应用中的业务拆分成一个个子服务，每个服务的粒度相对较小，因此系统中会出现大量的服务。由于每个服务都需要必要的配置信息才能运行，所以一套集中式的、动态的配置管理设施是必不可少的。SpringCloud提供了ConfigServer来解决这个问题，我们每一个微服务自己带着一个application.yml，上百个配置文件管理起来势必使以减十分麻烦的事情因此我们引入了SpringCloud Config。

简介

SpringConfig图解

SpringCloud Config为微服务架构中的微服务提供集中化的外部配置支持，配置服务器为各个不同微服务应用的所有环境提供了一个中心化的外部配置。

SpringCloud Config分为服务端和客户端两部分。

服务端也称为分布式配置中心，它是一个独立的微服务应用，用来连接配置服务器并为客户端提供获取配置信息，加密/解密信息等访问接口

客户端则是通过指定的配置中心来管理应用资源，以及与业务相关的配置内容，并在启动的时候从配置中心获取和加载配置信息配置服务器默认采用git来存储配置信息，这样就有助于对环境配置进行版本管理，并且可以通过git客户端工具来方便的管理和访问配置内容。

作用

  1. 集中管理配置文件

  2. 不同环境不同配置，动态化的配置更新，分环境部署比如dev/test/prod/beta/release

  3. 运行期间动态调整配置，不需要在每个服务部署的机器上编写配置文件，服务会向配置中心统一拉取配置自己的信息

  4. 当配置发生变动时，服务不需要重启即可感知到配置的变化并应用新的配置

  5. 将配置信息以REST接口的形式暴露

GitHub整合

  1. 在GitHub上创建一个repository

  2. 获取到git的链接git@github.com:bigdataxiaohan/microservicecloud-config.git在本地创建一个仓库

  3. 在本地的仓库在创建一个application.yml 注意保存的编码格式必要是UTF-8

    spring:
  profiles:
    active:
    - dev
---
spring:
  profiles: dev     #开发环境
  application:
    name: microservicecloud-config-hphblog-dev
---
spring:
  profiles: test   #测试环境
  application:
    name: microservicecloud-config-hphblog-test
#  请保存为UTF-8格式

  4. 将本地的配置文件推送到github上去

  5. 查看github上的配置信息

  6. 新建一个Moudle microservicecloud-config-3344作为配置中心模块

    pom.xml文件修改

    <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>microservicecloud</artifactId>
        <groupId>com.hph.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-config-3344</artifactId>
    <dependencies>
        <!-- springCloud Config -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-server</artifactId>
        </dependency>
        <!-- 图形化监控 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!-- 熔断 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <!-- 热部署插件 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>springloaded</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

  7. application.yml

    server:
  port: 3344

spring:
  application:
    name:  microservicecloud-config
  cloud:
    config:
      server:
        git:
          uri: https://github.com/bigdataxiaohan/microservicecloud-config.git #GitHub上面的git仓库名字

  8. Config_3344_StartSpringCloudApp

    package com.hph.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.config.server.EnableConfigServer;

@SpringBootApplication
@EnableConfigServer
public class Config_3344_StartSpringCloudApp
{
  public static void main(String[] args)
  {
   SpringApplication.run(Config_3344_StartSpringCloudApp.class,args);
  }
}

  9. windows下修改hosts文件，增加映射

    127.0.0.1  config-3344.com

测试

  1. 启动Config_3344_StartSpringCloudApp

  2. 访问http://config-3344.com:3344/application-dev.yml

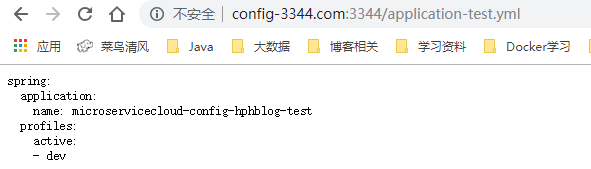

  3. 访问http://config-3344.com:3344/application-test.yml

  4. 访问http://config-3344.com:3344/application-xxx.yml(不存在的配置)

访问方式

链接地址：https://github.com/spring-cloud/spring-cloud-config/issues/292

方式一

/{application}/{profile}[/{label}]

访问:http://config-3344.com:3344/application/dev/master

访问：http://config-3344.com:3344/application/test/master

访问： http://config-3344.com:3344/application/xxx/master

方式二

/{label}/{application}-{profile}.yml

访问http://config-3344.com:3344/master/application-dev.yml

访问http://config-3344.com:3344/master/application-test.yml

配置客户端

创建一个microservicecloud-config-client.yml文件

microservicecloud-config-client.yml

spring:
  profiles:
    active:
    - dev
---
server:
  port: 8201
spring:
  profiles: dev
  application:
    name: microservicecloud-config-client
eureka:
  client:
    service-url:
      defaultZone: http://eureka-dev.com:7001/eureka/
---
server:
  port: 8202
spring:
  profiles: test
  application:
    name: microservicecloud-config-client
eureka:
  client:
    service-url:
      defaultZone: http://eureka-test.com:7001/eureka/

新建microservicecloud-config-client-3355

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>microservicecloud</artifactId>
        <groupId>com.hph.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-config-client-3355</artifactId>
    <dependencies>
        <!-- SpringCloud Config客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>springloaded</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

bootstrap.yml

applicaiton.yml是用户级的资源配置项

spring:
  cloud:
    config:
      name: microservicecloud-config-client #需要从github上读取的资源名称，注意没有yml后缀名
      profile: test   #本次访问的配置项
      label: master
      uri: http://config-3344.com:3344  #本微服务启动后先去找3344号服务，通过SpringCloudConfig获取GitHub的服务地址

bootstrap.yml是系统级的，优先级更加高

application.yml

spring:
  application:
    name: microservicecloud-config-client

Spring Cloud会创建一个Bootstrap Context，作为Spring应用的Application Context的父上下文。初始化的时候，Bootstrap Context负责从外部源加载配置属性并解析配置。这两个上下文共享一个从外部获取的Environment。Bootstrap属性有高优先级，默认情况下，它们不会被本地配置覆盖。 Bootstrap context和Application Context有着不同的约定，
所以新增了一个bootstrap.yml文件，保证Bootstrap Context和Application Context配置的分离。

增加映射

127.0.0.1  client-config.com

新建rest类，验证是否能从GitHub上读取配置

package com.hph.springcloud.rest;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;


@RestController
public class ConfigClientRest {

    @Value("${spring.application.name}")
    private String applicationName;

    @Value("${eureka.client.service-url.defaultZone}")
    private String eurekaServers;

    @Value("${server.port}")
    private String port;

    @RequestMapping("/config")
    public String getConfig()
    {
        String str = "applicationName: "+applicationName+"\t eurekaServers:"+eurekaServers+"\t port: "+port;
        System.out.println("******str: "+ str);
        return "applicationName: "+applicationName+"\t eurekaServers:"+eurekaServers+"\t port: "+port;
    }
}

测试

启动Config配置中心3344微服务并自测

访问http://config-3344.com:3344/application-dev.yml

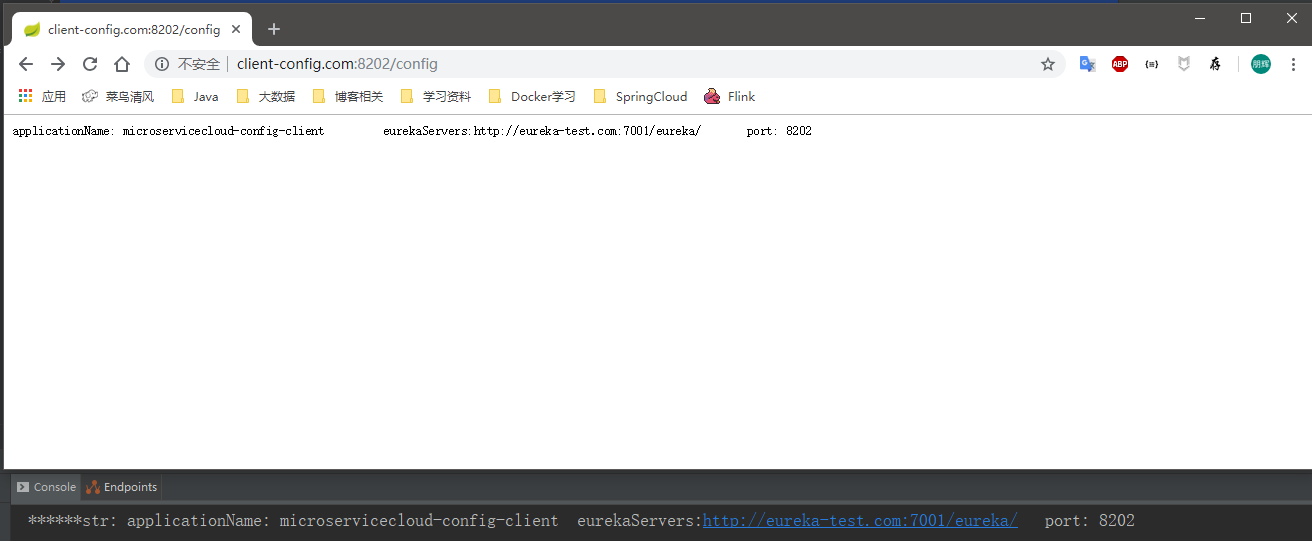

因为我们配置的文件是test访问的端口是8202

访问测试端口

SpringCloud Config配置实战

注意:编码方式一定要是UTF-8

新建microservicecloud-config-eureka-client.yml

spring:
  profiles:
    active:
    - dev
---
server:
  port: 7001 #注册中心占用7001端口,冒号后面必须要有空格

spring:
  profiles: dev
  application:
    name: microservicecloud-config-eureka-client

eureka:
  instance:
    hostname: eureka7001.com #冒号后面必须要有空格
  client:
    register-with-eureka: false #当前的eureka-server自己不注册进服务列表中
    fetch-registry: false #不通过eureka获取注册信息
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/
---
server:
  port: 7001 #注册中心占用7001端口,冒号后面必须要有空格

spring:
  profiles: test
  application:
    name: microservicecloud-config-eureka-client

eureka:
  instance:
    hostname: eureka7001.com #冒号后面必须要有空格
  client:
    register-with-eureka: false #当前的eureka-server自己不注册进服务列表中
    fetch-registry: false #不通过eureka获取注册信息
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/

新建microservicecloud-config-dept-client.yml

spring:
  profiles:
    active:
    - dev
---
server:
  port: 8001
spring:
   profiles: dev
   application:
    name: microservicecloud-config-dept-client
   datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://192.168.1.110:3306/cloudDB01
    username: root
    password: 123456
    dbcp2:
      min-idle: 5
      initial-size: 5
      max-total: 5
      max-wait-millis: 200
mybatis:
  config-location: classpath:mybatis/mybatis.cfg.xml
  type-aliases-package: com.hph.springcloud.entities
  mapper-locations:
  - classpath:mybatis/mapper/**/*.xml

eureka:
  client: #客户端注册进eureka服务列表内
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka
  instance:
    instance-id: dept-8001.com
    prefer-ip-address: true

info:
  app.name: hphblog-microservicecloud-springcloudconfig01
  company.name: www.hphnlog.cn
  build.artifactId: ${project.artifactId}
  build.version: ${project.version}
---
server:
  port: 8001
spring:
   profiles: test
   application:
    name: microservicecloud-config-dept-client
   datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://192.168.1.110:3306/cloudDB02
    username: root
    password: 123456
    dbcp2:
      min-idle: 5
      initial-size: 5
      max-total: 5
      max-wait-millis: 200


mybatis:
  config-location: classpath:mybatis/mybatis.cfg.xml
  type-aliases-package: com.hph.springcloud.entities
  mapper-locations:
  - classpath:mybatis/mapper/**/*.xml

eureka:
  client: #客户端注册进eureka服务列表内
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka
  instance:
    instance-id: dept-8001.com
    prefer-ip-address: true

info:
  app.name: hphblog-microservicecloud-springcloudconfig01
  company.name: www.hphnlog.cn
  build.artifactId: ${project.artifactId}
  build.version: ${project.version}

新建工程microservicecloud-config-eureka-client-7001

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>microservicecloud</artifactId>
        <groupId>com.hph.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-config-eureka-client-7001</artifactId>
    <dependencies>
        <!-- SpringCloudConfig配置 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka-server</artifactId>
        </dependency>
        <!-- 热部署插件 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>springloaded</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

bootstrap.yml

spring:
  cloud:
    config:
      name: microservicecloud-config-eureka-client     #需要从github上读取的资源名称，注意没有yml后缀名
      profile: dev
      label: master
      uri: http://config-3344.com:3344      #SpringCloudConfig获取的服务地址

application.yml

spring:
  application:
    name: microservicecloud-config-eureka-client

Config_Git_EurekaServerApplication

package com.hph.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class Config_Git_EurekaServerApplication
{
  public static void main(String[] args)
  {
   SpringApplication.run(Config_Git_EurekaServerApplication.class, args);
  }
}

测试

  1. 先启动microservicecloud-config-3344微服务，保证Config总配置状态可用

  2. 再启动microservicecloud-config-eureka-client-7001微服务

  3. 访问http://eureka7001.com:7001/

microservicecloud-config-dept-client-8001

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>microservicecloud</artifactId>
        <groupId>com.hph.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-config-dept-client-8001</artifactId>

    <dependencies>
        <!-- SpringCloudConfig配置 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>com.hph.springcloud</groupId>
            <artifactId>microservicecloud-api</artifactId>
            <version>${project.version}</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>springloaded</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

</project>

bootstrap.yml

spring:
  cloud:
    config:
      name: microservicecloud-config-dept-client #需要从github上读取的资源名称，注意没有yml后缀名
      #profile配置是什么就取什么配置dev or test
      #profile: dev
      profile: test
      label: master
      uri: http://config-3344.com:3344  #SpringCloudConfig获取的服务地址

application.yml

spring:
  application:
    name: microservicecloud-config-dept-client

主启动类

package com.hph.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient //本服务启动后会自动注册进eureka服务中
@EnableDiscoveryClient //服务发现
public class DeptProvider8001_App {
    public static void main(String[] args) {
        SpringApplication.run(DeptProvider8001_App.class, args);
    }
}

其他配置

参考microservicecloud-provider-dept-8001

​

测试

  1. 启动microservicecloud-config-3344主启动类

  2. 启动microservicecloud-config-client-3355主启动类

  3. 启动microservicecloud-config-eureka-client-7001主启动类

  4. 启动microservicecloud-config-dept-client-8001主启动类

    由于我们激活的配置是test所以我们访问一下<http://localhost:8001/dept/list>

  5. 修改microservicecloud-config-dept-client-8001中的profile属性改成dev

  6. 我们将本地的文件修改一下让dev模式下访问3号数据库重新启动所有服务

完整代码

Github地址: &nbsp;https://github.com/bigdataxiaohan/microservicecloud/tree/master/SpringConfig

文章作者: 清风笑丶
文章链接: http://www.hphblog.cn/2019/04/27/springcloud-yu-springconfig-fen-bu-shi-pei-zhi-zhong-xin/
版权声明: 本博客所有文章除特別声明外，均采用 CC BY 4.0 许可协议。转载请注明来源 清风笑丶 !
SpringCloud
 上一篇
数据结构与算法前置 数据结构与算法前置
简介数据结构是一门研究非等值计算的程序设计问题的操作对象,以及他们之间的关系核操作等相关问题的学科。 简而言之数据结构是计算机存储、组织数据的方式。数据结构是指相互之间存在一种或多种特定关系的数据元素的集合。通常情况下，精心选择的数据结构可
2019-05-02 数据结构
数据结构
下一篇
SpringCloud与zuul SpringCloud与zuul
简介Zuul包含了对请求的路由和过滤两个最主要的功能：其中路由功能负责将外部请求转发到具体的微服务实例上，是实现外部访问统一入口的基础而过滤器功能则负责对请求的处理过程进行干预，是实现请求校验、服务聚合等功能的基础Zuul和Eureka进行
2019-04-27 微服务
SpringCloud zuul
  目录
